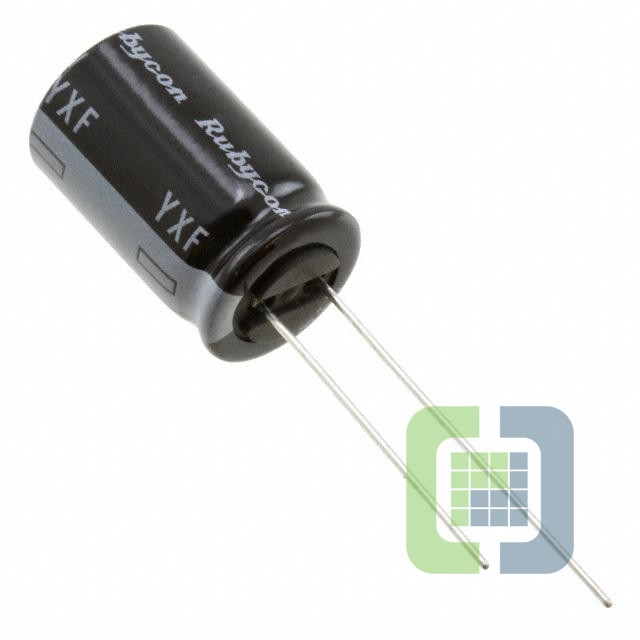

63YXF330MEFCCC12.5X20
Rubycon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 330UF 20% 63V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet 63YXF330MEFCCC12.5X20 Datasheet
-
ECAD Model
- Share
In Stock: 151
Can ship immediately
Pricing:
- 1$0.38823
- 1,000$0.37058
Quote It
Technical Details
- Series:YXF
- Package:Bulk
- Part Status:Active
- Capacitance:330 µF
- Tolerance:±20%
- Voltage - Rated:63 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:10000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:462 mA @ 120 Hz
- Ripple Current @ High Frequency:660 mA @ 100 kHz
- Impedance:160 mOhms
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.492" Dia (12.50mm)
- Height - Seated (Max):0.866" (22.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
