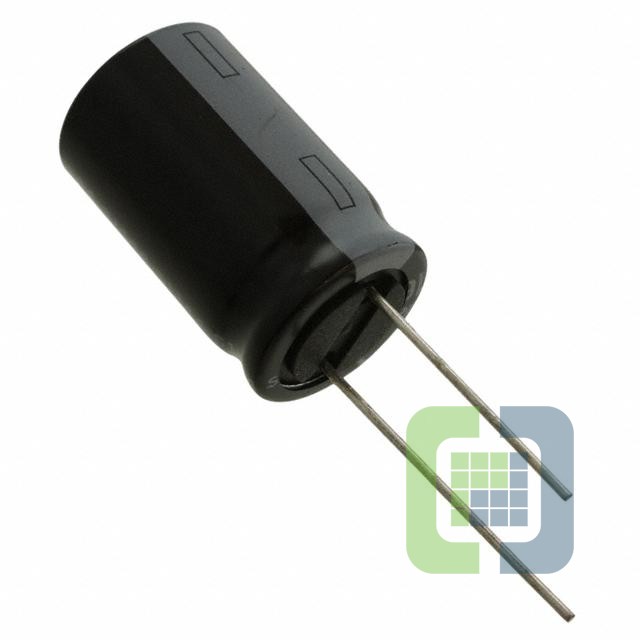

100PX470MEFCGC16X25
Rubycon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 470UF 20% 100V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet 100PX470MEFCGC16X25 Datasheet
-
ECAD Model
- Share
In Stock: 156
Can ship immediately
Pricing:
- 1$0.9062
- 600$0.86502
Quote It
Technical Details
- Series:PX
- Package:Tape & Box (TB)
- Part Status:Active
- Capacitance:470 µF
- Tolerance:±20%
- Voltage - Rated:100 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:880 mA @ 120 Hz
- Ripple Current @ High Frequency:1.056 A @ 10 kHz
- Impedance:-
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.630" Dia (16.00mm)
- Height - Seated (Max):1.043" (26.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
