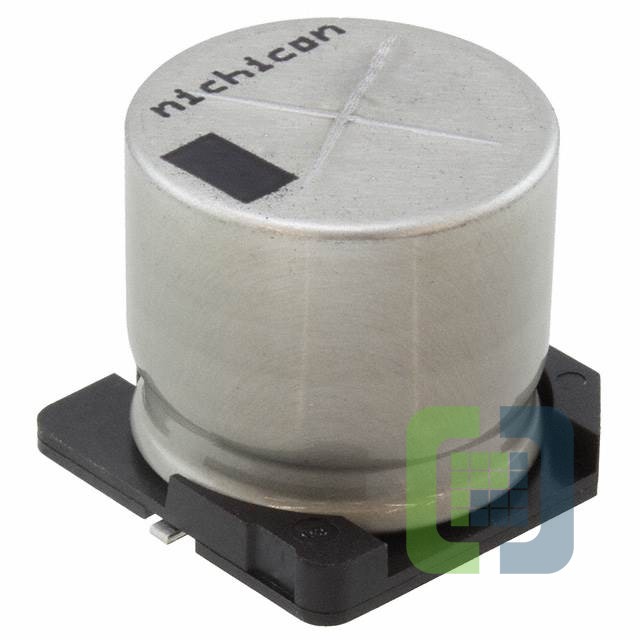

UUJ2A101MNQ1MS

Technical Details

• Series:UUJ
• Package:Tape & Reel (TR)
• Part Status:Active
• Capacitance:100 µF
• Tolerance:±20%
• Voltage - Rated:100 V
• ESR (Equivalent Series Resistance):-
• Lifetime @ Temp.:5000 Hrs @ 105°C
• Operating Temperature:-55°C ~ 105°C
• Polarization:Polar
• Ratings:-

• Applications:General Purpose
• Ripple Current @ Low Frequency:285 mA @ 120 Hz
• Ripple Current @ High Frequency:427.5 mA @ 10 kHz
• Impedance:-
• Lead Spacing:-
• Size / Dimension:0.630" Dia (16.00mm)
• Height - Seated (Max):0.689" (17.50mm)
• Surface Mount Land Size:0.673" L x 0.673" W (17.10mm x 17.10mm)
• Mounting Type:Surface Mount
• Package / Case:Radial, Can - SMD
