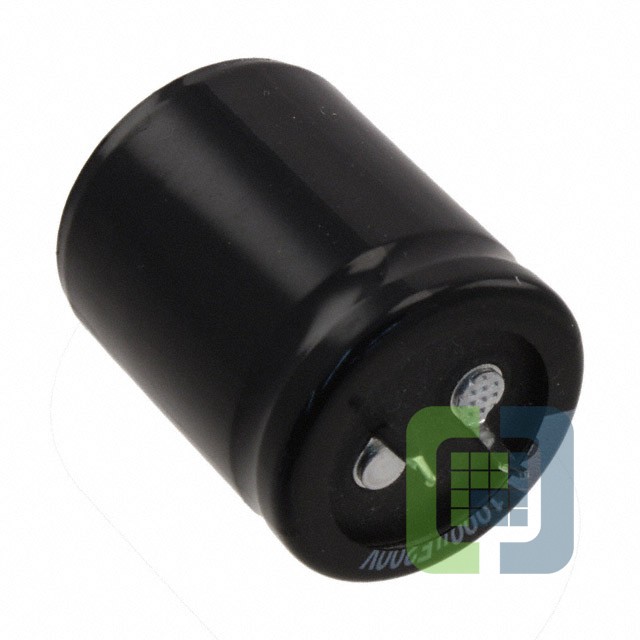

SLPX471M220E1P3
Cornell Dubilier Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 470UF 20% 220V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet SLPX471M220E1P3 Datasheet
-
ECAD Model
- Share
In Stock: 168
Can ship immediately
Pricing:
- 1$1.638
- 1,000$1.638
Quote It
Technical Details
- Series:SLPX
- Package:Bulk
- Part Status:Active
- Capacitance:470 µF
- Tolerance:±20%
- Voltage - Rated:220 V
- ESR (Equivalent Series Resistance):423mOhm @ 120Hz
- Lifetime @ Temp.:3000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:2.16 A @ 120 Hz
- Ripple Current @ High Frequency:3.18 A @ 20 kHz
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:1.181" Dia (30.00mm)
- Height - Seated (Max):0.984" (25.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
