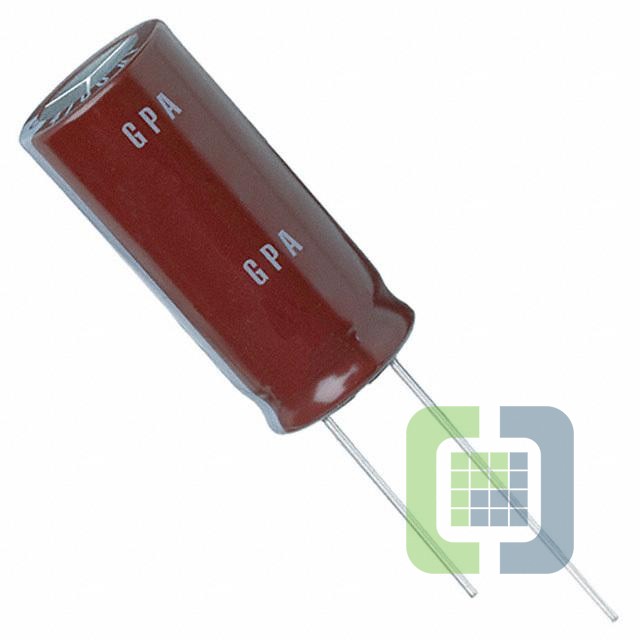

EGPA101ELL271MM20S
United Chemi-Con
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 270UF 20% 100V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet EGPA101ELL271MM20S Datasheet
-
ECAD Model
- Share
In Stock: 195
Can ship immediately
Pricing:
- 1$1.96144
- 500$1.16405
Quote It
Technical Details
- Series:GPA
- Package:Bulk
- Part Status:Active
- Capacitance:270 µF
- Tolerance:±20%
- Voltage - Rated:100 V
- ESR (Equivalent Series Resistance):91mOhm @ 100kHz
- Lifetime @ Temp.:3000 Hrs @ 125°C
- Operating Temperature:-40°C ~ 125°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:845 mA @ 120 Hz
- Ripple Current @ High Frequency:1.69 A @ 100 kHz
- Impedance:-
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.709" Dia (18.00mm)
- Height - Seated (Max):0.846" (21.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
