EGXF101ELL431MM25S
United Chemi-Con
- Lifecycle status Active
- RoHS RoHS Compliant

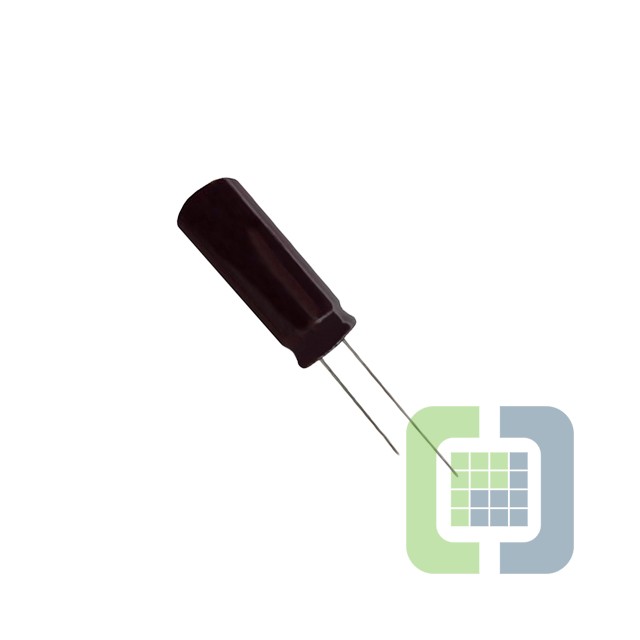

- DescriptionCAP ALUM 430UF 20% 100V RAD TH
- CategoryAluminum Electrolytic Capacitors
- Datasheet EGXF101ELL431MM25S Datasheet
-
ECAD Model
- Share
In Stock: 130
Can ship immediately
Pricing:
- 1$2.08438
- 10$1.67879
- 100$1.30945
- 500$0.97369
- 1,000$0.91325
Quote It
Technical Details
- Series:GXF
- Package:Bulk
- Part Status:Active
- Capacitance:430 µF
- Tolerance:±20%
- Voltage - Rated:100 V
- ESR (Equivalent Series Resistance):54mOhm @ 100kHz
- Lifetime @ Temp.:3000 Hrs @ 125°C
- Operating Temperature:-40°C ~ 125°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:1.155 A @ 120 Hz
- Ripple Current @ High Frequency:-
- Impedance:-
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.709" Dia (18.00mm)
- Height - Seated (Max):1.043" (26.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
