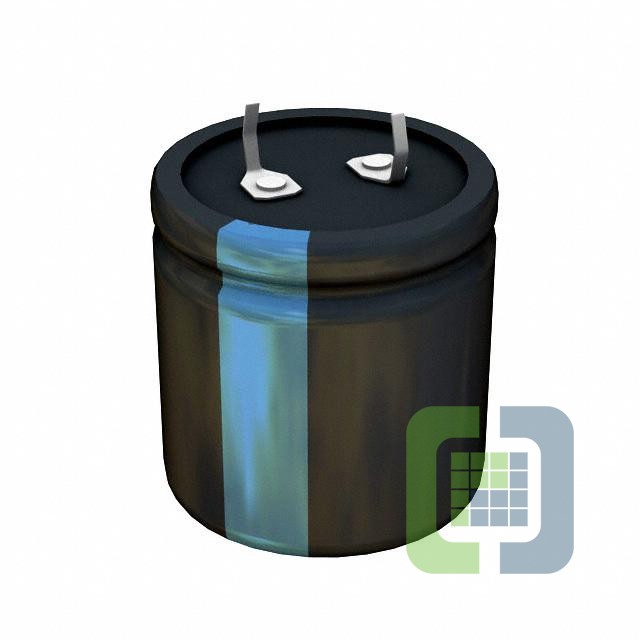

381LR471M250K022
Cornell Dubilier Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 470UF 20% 250V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet 381LR471M250K022 Datasheet
-
ECAD Model
- Share
In Stock: 129
Can ship immediately
Pricing:
- 1$2.5872
- 560$2.352
Quote It
Technical Details
- Series:381LR
- Package:Bulk
- Part Status:Active
- Capacitance:470 µF
- Tolerance:±20%
- Voltage - Rated:250 V
- ESR (Equivalent Series Resistance):317mOhm @ 120Hz
- Lifetime @ Temp.:3000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:1.85 A @ 120 Hz
- Ripple Current @ High Frequency:2.64 A @ 20 kHz
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:1.181" Dia (30.00mm)
- Height - Seated (Max):1.260" (32.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
