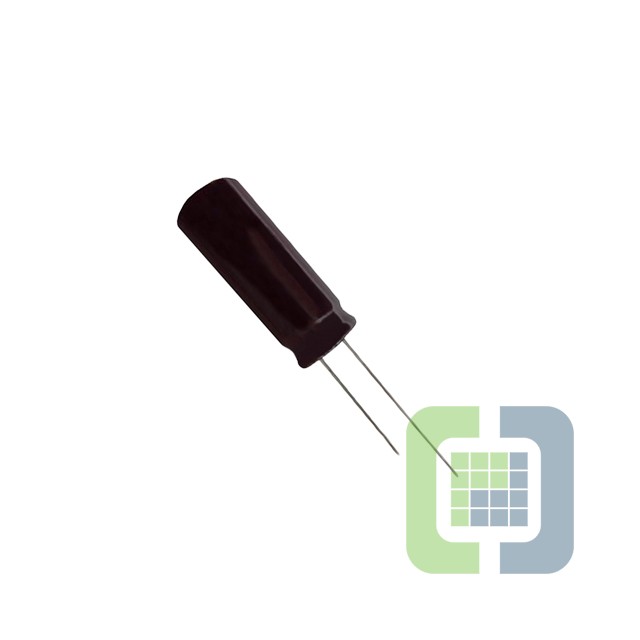

EGXF250ELL912MM35S
United Chemi-Con
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 9100UF 20% 25V RAD TH
- CategoryAluminum Electrolytic Capacitors
- Datasheet EGXF250ELL912MM35S Datasheet
-
ECAD Model
- Share
In Stock: 103
Can ship immediately
Pricing:
- 1$2.5944
- 250$2.47647
Quote It
Technical Details
- Series:GXF
- Package:Bulk
- Part Status:Active
- Capacitance:9100 µF
- Tolerance:±20%
- Voltage - Rated:25 V
- ESR (Equivalent Series Resistance):15mOhm @ 100kHz
- Lifetime @ Temp.:3000 Hrs @ 125°C
- Operating Temperature:-40°C ~ 125°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:1.5 A @ 120 Hz
- Ripple Current @ High Frequency:-
- Impedance:-
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.709" Dia (18.00mm)
- Height - Seated (Max):1.437" (36.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
