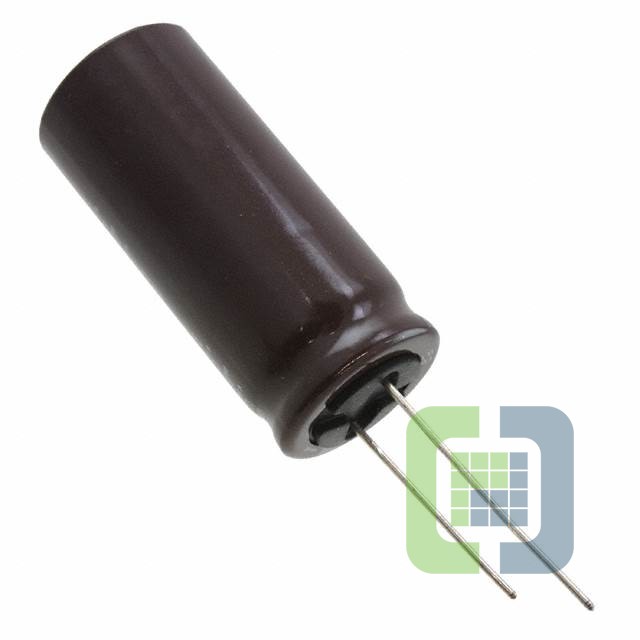

UAS2D331MHD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 330UF 20% 200V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UAS2D331MHD Datasheet
-
ECAD Model
- Share
In Stock: 134
Can ship immediately
Pricing:
- 1$2.6015
- 100$2.6015
Quote It
Technical Details
- Series:UAS
- Package:Bulk
- Part Status:Active
- Capacitance:330 µF
- Tolerance:±20%
- Voltage - Rated:200 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:910 mA @ 120 Hz
- Ripple Current @ High Frequency:1.456 A @ 10 kHz
- Impedance:-
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.709" Dia (18.00mm)
- Height - Seated (Max):1.654" (42.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
