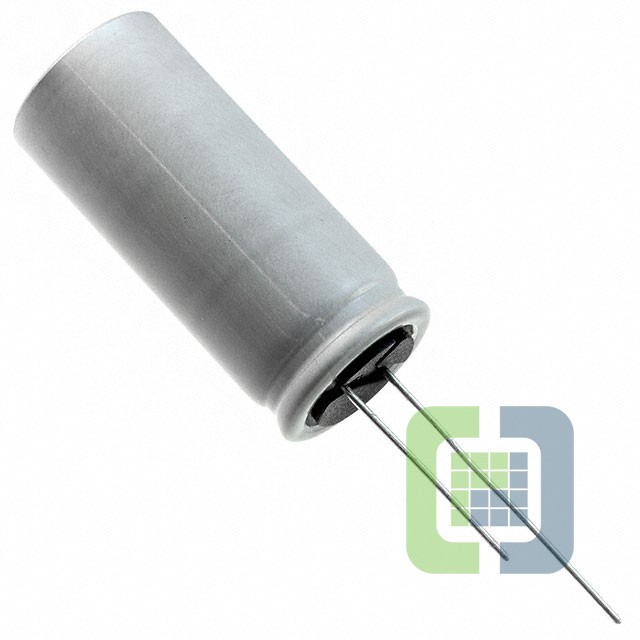

EGPD800ELL132ML40H
United Chemi-Con
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 1300UF 20% 80V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet EGPD800ELL132ML40H Datasheet
-
ECAD Model
- Share
In Stock: 162
Can ship immediately
Pricing:
- 1$3.11536
- 250$2.22012
Quote It
Technical Details
- Series:GPD
- Package:Bulk
- Part Status:Active
- Capacitance:1300 µF
- Tolerance:±20%
- Voltage - Rated:80 V
- ESR (Equivalent Series Resistance):25mOhm @ 100kHz
- Lifetime @ Temp.:2000 Hrs @ 135°C
- Operating Temperature:-40°C ~ 135°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:3.114 A @ 120 Hz
- Ripple Current @ High Frequency:5.19 A @ 100 kHz
- Impedance:-
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.630" Dia (16.00mm)
- Height - Seated (Max):1.634" (41.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
