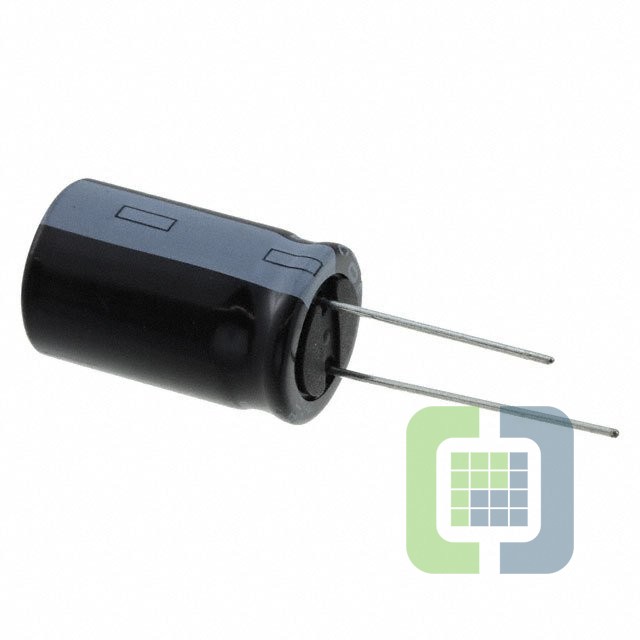

500BXC47MEFC18X31.5
Rubycon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 47UF 20% 500V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet 500BXC47MEFC18X31.5 Datasheet
-
ECAD Model
- Share
In Stock: 146
Can ship immediately
Pricing:
- 1$3.12225
- 200$2.98033
Quote It
Technical Details
- Series:BXC
- Package:Bulk
- Part Status:Active
- Capacitance:47 µF
- Tolerance:±20%
- Voltage - Rated:500 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:12000 Hrs @ 105°C
- Operating Temperature:-25°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:352 mA @ 120 Hz
- Ripple Current @ High Frequency:-
- Impedance:-
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.709" Dia (18.00mm)
- Height - Seated (Max):1.319" (33.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
