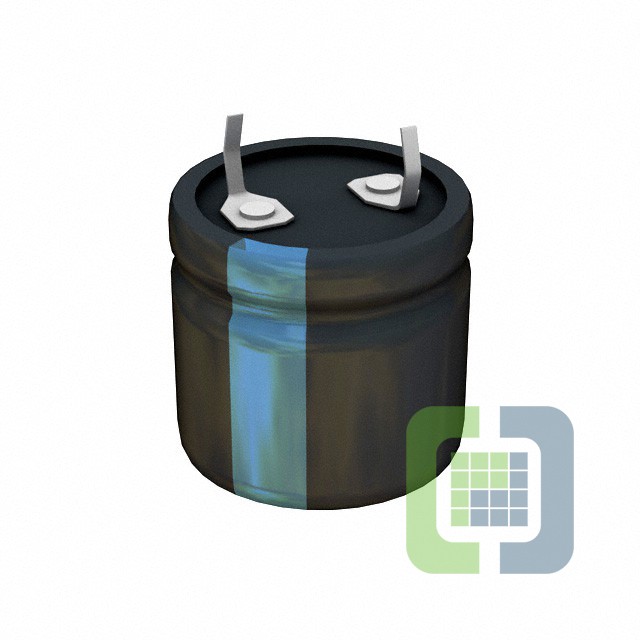

380LX470M400H202
Cornell Dubilier Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 47UF 20% 400V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet 380LX470M400H202 Datasheet
-
ECAD Model
- Share
In Stock: 115
Can ship immediately
Pricing:
- 1$3.13
- 10$1.94417
- 100$1.41417
Quote It
Technical Details
- Series:380LX
- Package:Bulk
- Part Status:Obsolete
- Capacitance:47 µF
- Tolerance:±20%
- Voltage - Rated:400 V
- ESR (Equivalent Series Resistance):3.53Ohm @ 120Hz
- Lifetime @ Temp.:3000 Hrs @ 85°C
- Operating Temperature:-25°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:250 mA @ 120 Hz
- Ripple Current @ High Frequency:-
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:0.866" Dia (22.00mm)
- Height - Seated (Max):0.866" (22.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
