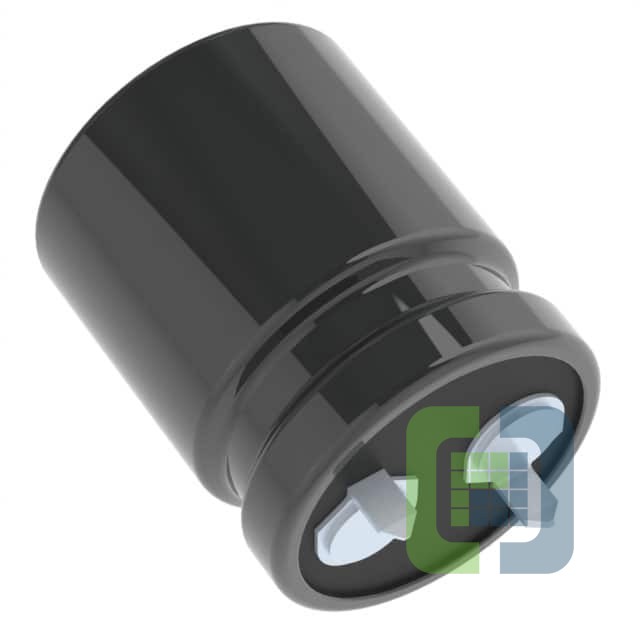

EKMS3B1VSN181MP25S
United Chemi-Con
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 180UF 20% 315V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet EKMS3B1VSN181MP25S Datasheet
-
ECAD Model
- Share
In Stock: 156
Can ship immediately
Pricing:
- 1$3.1523
- 200$2.48585
Quote It
Technical Details
- Series:KMS
- Package:Bulk
- Part Status:Active
- Capacitance:180 µF
- Tolerance:±20%
- Voltage - Rated:315 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:3000 Hrs @ 105°C
- Operating Temperature:-25°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:950 mA @ 120 Hz
- Ripple Current @ High Frequency:1.3585 A @ 50 kHz
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:0.866" Dia (22.00mm)
- Height - Seated (Max):1.083" (27.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
