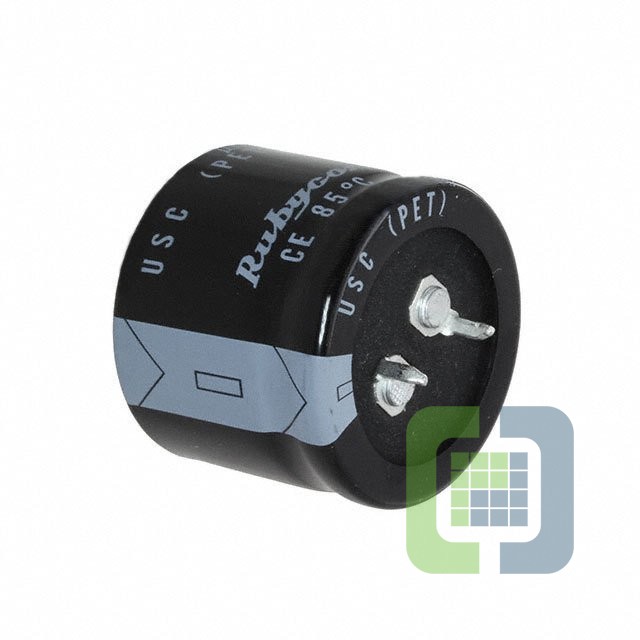

180USC1000MEFCSN30X30
Rubycon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 1000UF 20% 180V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet 180USC1000MEFCSN30X30 Datasheet
-
ECAD Model
- Share
In Stock: 158
Can ship immediately
Pricing:
- 1$3.1584
- 100$3.1584
Quote It
Technical Details
- Series:USC
- Package:Bulk
- Part Status:Active
- Capacitance:1000 µF
- Tolerance:±20%
- Voltage - Rated:180 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:3000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:3.1 A @ 120 Hz
- Ripple Current @ High Frequency:4.65 A @ 10 kHz
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:1.181" Dia (30.00mm)
- Height - Seated (Max):1.260" (32.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
