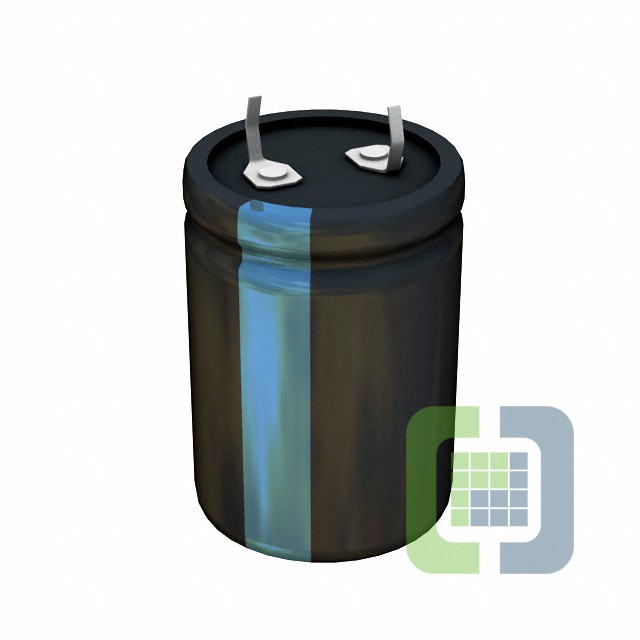

380LQ122M160J032
Cornell Dubilier Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 1200UF 20% 160V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet 380LQ122M160J032 Datasheet
-
ECAD Model
- Share
In Stock: 189
Can ship immediately
Pricing:
- 1$3.16125
- 200$3.16125
Quote It
Technical Details
- Series:380LQ
- Package:Bulk
- Part Status:Active
- Capacitance:1200 µF
- Tolerance:±20%
- Voltage - Rated:160 V
- ESR (Equivalent Series Resistance):166mOhm @ 120Hz
- Lifetime @ Temp.:2000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:3.25 A @ 120 Hz
- Ripple Current @ High Frequency:4.55 A @ 20 kHz
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:0.984" Dia (25.00mm)
- Height - Seated (Max):1.457" (37.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
