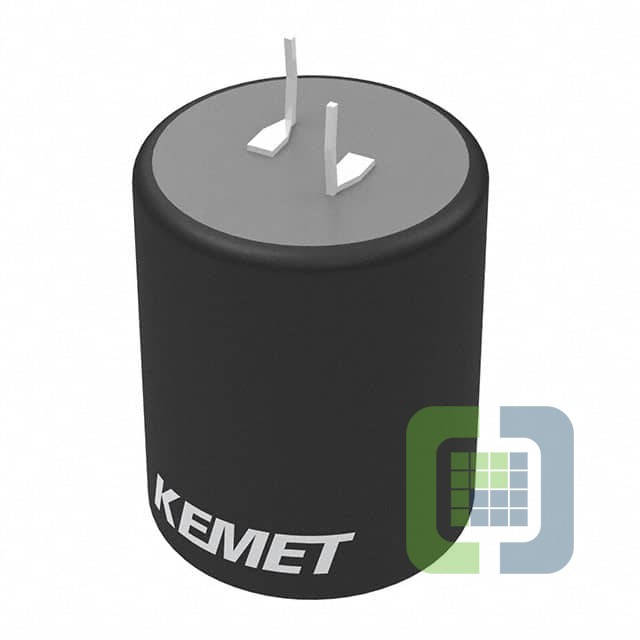

ALC80A331BD250
KEMET
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSNAP-IN HIGH CV 105C 330UF 250V
- CategoryAluminum Electrolytic Capacitors
-
ECAD Model
- Share
In Stock: 189
Can ship immediately
Pricing:
- 1$3.16953
- 360$3.16953
Quote It
Technical Details
- Series:ALC80
- Package:Bulk
- Part Status:Active
- Capacitance:330 µF
- Tolerance:±20%
- Voltage - Rated:250 V
- ESR (Equivalent Series Resistance):532mOhm @ 100Hz
- Lifetime @ Temp.:6000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:1.53 A @ 100 Hz
- Ripple Current @ High Frequency:3.53 A @ 10 kHz
- Impedance:314 mOhms
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:0.984" Dia (25.00mm)
- Height - Seated (Max):1.654" (42.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
