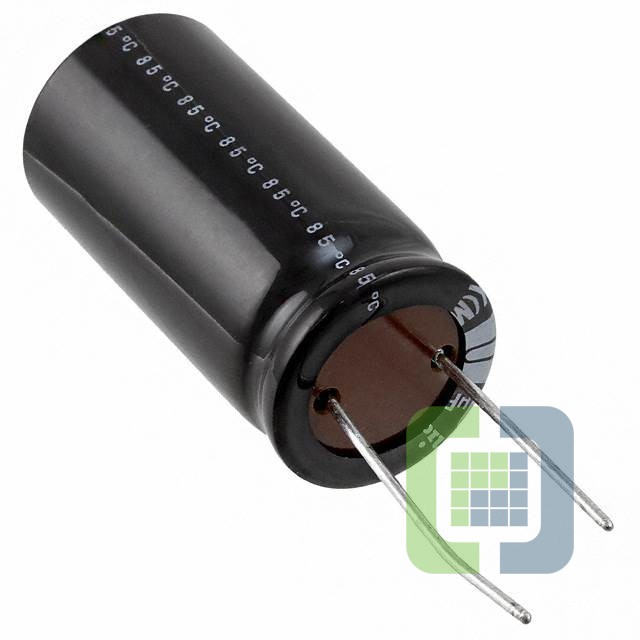

UVK2E331MRD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 330UF 20% 250V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UVK2E331MRD Datasheet
-
ECAD Model
- Share
In Stock: 160
Can ship immediately
Pricing:
- 1$3.187
- 100$3.0421
Quote It
Technical Details
- Series:UVK
- Package:Bulk
- Part Status:Active
- Capacitance:330 µF
- Tolerance:±20%
- Voltage - Rated:250 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:1 A @ 120 Hz
- Ripple Current @ High Frequency:1.6 A @ 10 kHz
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:0.787" Dia (20.00mm)
- Height - Seated (Max):1.654" (42.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
