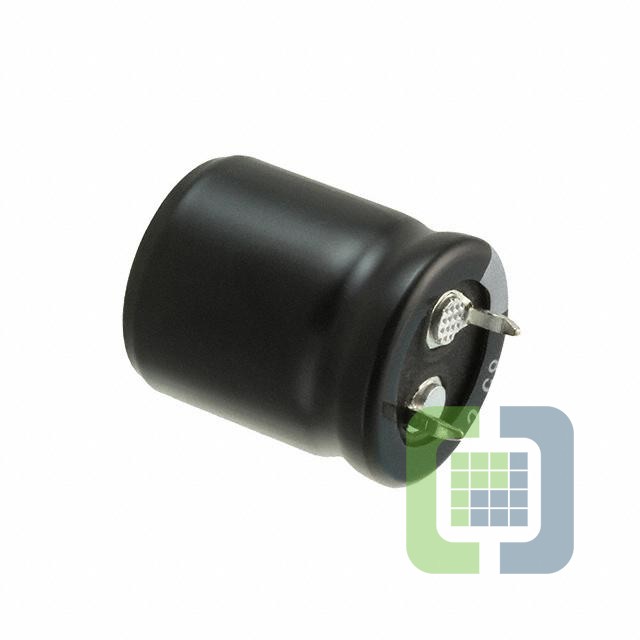

827LBB200M2EC
Cornell Dubilier Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 820UF 20% 200V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet 827LBB200M2EC Datasheet
-
ECAD Model
- Share
In Stock: 137
Can ship immediately
Pricing:
- 1$3.19683
- 1,200$3.19683
Quote It
Technical Details
- Series:LBB
- Package:Bulk
- Part Status:Active
- Capacitance:820 µF
- Tolerance:±20%
- Voltage - Rated:200 V
- ESR (Equivalent Series Resistance):303.27mOhm @ 120Hz
- Lifetime @ Temp.:3000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:3.21 A @ 120 Hz
- Ripple Current @ High Frequency:4.7187 A @ 10 kHz
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:1.378" Dia (35.00mm)
- Height - Seated (Max):1.063" (27.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
