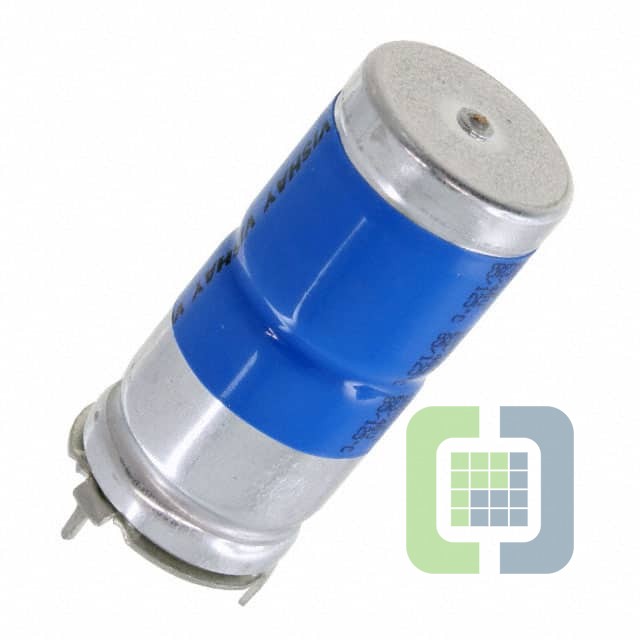

MAL212048331E3
Vishay BC Components/Beyshlag/Draloric
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 330UF 20% 63V T/H
- CategoryAluminum Electrolytic Capacitors
- Datasheet MAL212048331E3 Datasheet
-
ECAD Model
- Share
In Stock: 170
Can ship immediately
Pricing:
- 1$3.8533
- 800$3.50017
Quote It
Technical Details
- Series:120 ATC
- Package:Bulk
- Part Status:Active
- Capacitance:330 µF
- Tolerance:±20%
- Voltage - Rated:63 V
- ESR (Equivalent Series Resistance):105mOhm
- Lifetime @ Temp.:8000 Hrs @ 125°C
- Operating Temperature:-40°C ~ 125°C
- Polarization:-
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:-
- Ripple Current @ High Frequency:2.51 A @ 10 kHz
- Impedance:91 mOhms
- Lead Spacing:0.325" (8.25mm)
- Size / Dimension:0.591" Dia x 1.181" L (15.00mm x 30.00mm)
- Height - Seated (Max):-
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Mounting Ring - 4 Lead
