MAL205155223E3
Vishay BC Components/Beyshlag/Draloric
- Lifecycle status Active
- RoHS RoHS Compliant

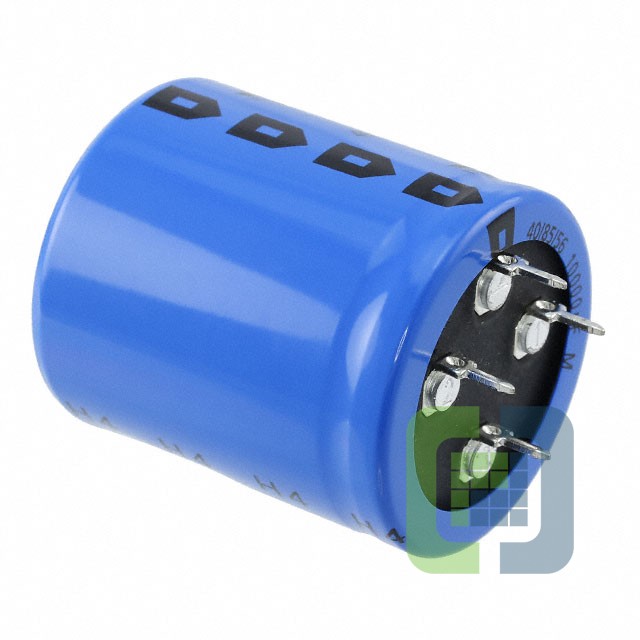

- DescriptionCAP ALUM 22000UF 20% 16V T/H
- CategoryAluminum Electrolytic Capacitors
- Datasheet MAL205155223E3 Datasheet
-
ECAD Model
- Share
In Stock: 121
Can ship immediately
Pricing:
- 1$8.8558
- 600$8.23232
Quote It
Technical Details
- Series:051 PEC-PW
- Package:Tape & Box (TB)
- Part Status:Active
- Capacitance:22000 µF
- Tolerance:±20%
- Voltage - Rated:16 V
- ESR (Equivalent Series Resistance):29mOhm @ 100Hz
- Lifetime @ Temp.:12000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:5.5 A @ 100 Hz
- Ripple Current @ High Frequency:-
- Impedance:26 mOhms
- Lead Spacing:0.689" (17.50mm)
- Size / Dimension:1.378" Dia (35.00mm)
- Height - Seated (Max):1.772" (45.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - 4 Lead
