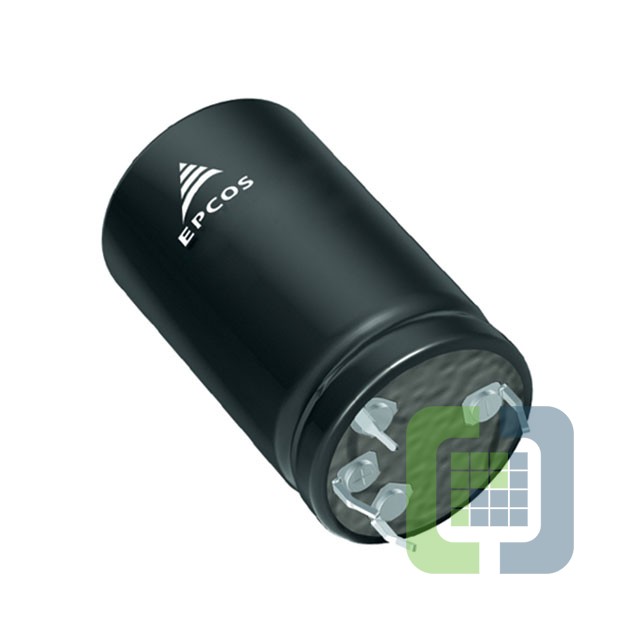

B43508F2108M87
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 1000UF 20% 250V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet B43508F2108M87 Datasheet
-
ECAD Model
- Share
In Stock: 159
Can ship immediately
Pricing:
- 1$8.95744
- 320$8.95744
Quote It
Technical Details
- Series:B43508
- Package:Bulk
- Part Status:Active
- Capacitance:1000 µF
- Tolerance:±20%
- Voltage - Rated:250 V
- ESR (Equivalent Series Resistance):120mOhm @ 100Hz
- Lifetime @ Temp.:3000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:2.23 A @ 100 Hz
- Ripple Current @ High Frequency:-
- Impedance:160 mOhms
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:1.181" Dia (30.00mm)
- Height - Seated (Max):1.661" (42.20mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
