B43545A9687M087
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant

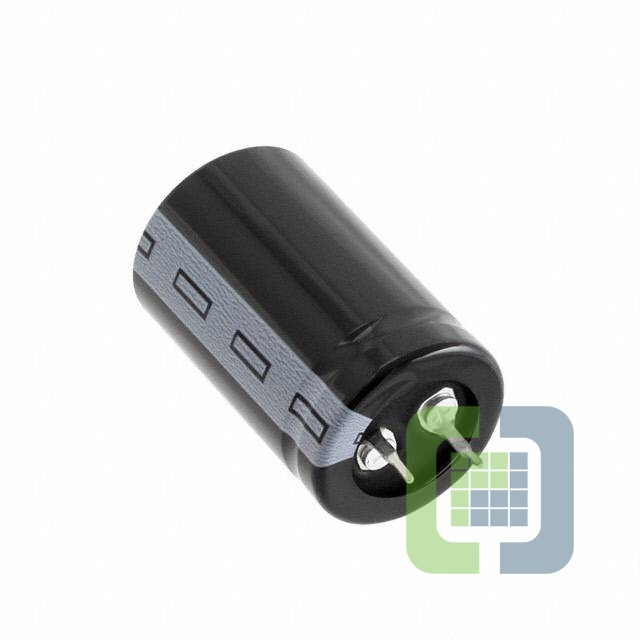

- DescriptionCAP ALUM 680UF 20% 400V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet B43545A9687M087 Datasheet
-
ECAD Model
- Share
In Stock: 165
Can ship immediately
Pricing:
- 1$9.01042
- 240$9.01042
Quote It
Technical Details
- Series:B43545
- Package:Tray
- Part Status:Active
- Capacitance:680 µF
- Tolerance:±20%
- Voltage - Rated:400 V
- ESR (Equivalent Series Resistance):90mOhm @ 100Hz
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:3.33 A @ 100 Hz
- Ripple Current @ High Frequency:-
- Impedance:130 mOhms
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:1.378" Dia (35.00mm)
- Height - Seated (Max):2.055" (52.20mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
