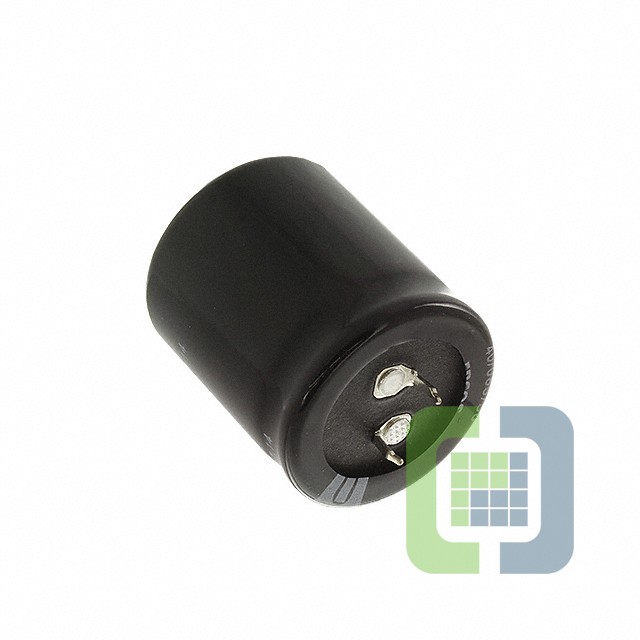

B43305F2158M
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 1500UF 20% 250V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet B43305F2158M Datasheet
-
ECAD Model
- Share
In Stock: 119
Can ship immediately
Pricing:
- 1$9.03263
- 240$9.03263
Quote It
Technical Details
- Series:B43305
- Package:Bulk
- Part Status:Active
- Capacitance:1500 µF
- Tolerance:±20%
- Voltage - Rated:250 V
- ESR (Equivalent Series Resistance):85mOhm @ 100Hz
- Lifetime @ Temp.:2000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:3.13 A @ 100 Hz
- Ripple Current @ High Frequency:-
- Impedance:120 mOhms
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:1.378" Dia (35.00mm)
- Height - Seated (Max):1.654" (42.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
