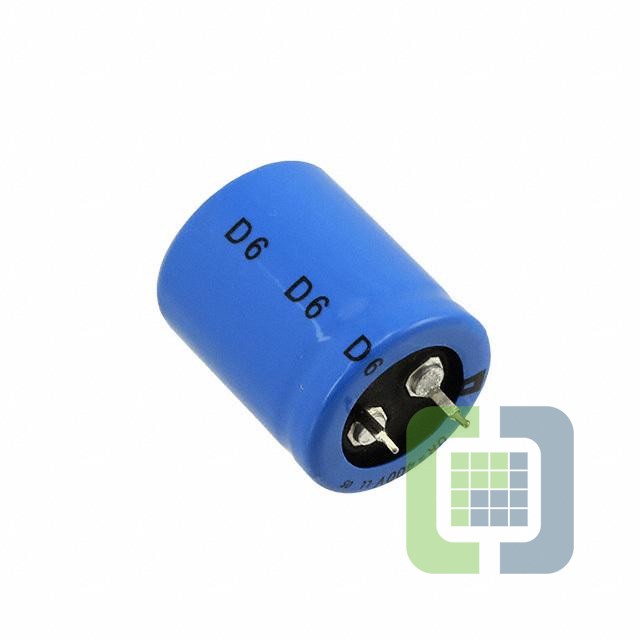

MAL205756331E3
Vishay BC Components/Beyshlag/Draloric
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 330UF 20% 400V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet MAL205756331E3 Datasheet
-
ECAD Model
- Share
In Stock: 116
Can ship immediately
Pricing:
- 1$9.03935
- 600$8.40295
Quote It
Technical Details
- Series:057 PSM-SI
- Package:Tape & Box (TB)
- Part Status:Active
- Capacitance:330 µF
- Tolerance:±20%
- Voltage - Rated:400 V
- ESR (Equivalent Series Resistance):480mOhm @ 100Hz
- Lifetime @ Temp.:12000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:Audio
- Ripple Current @ Low Frequency:1.85 A @ 100 Hz
- Ripple Current @ High Frequency:-
- Impedance:280 mOhms
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:1.378" Dia (35.00mm)
- Height - Seated (Max):1.654" (42.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
