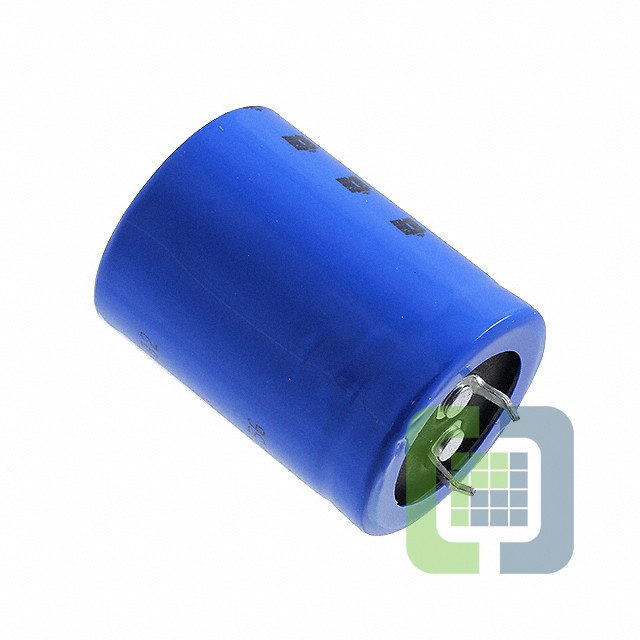

MAL215881103E3

Technical Details

• Series:158 PUL-SI
• Package:Bulk
• Part Status:Active
• Capacitance:10000 µF
• Tolerance:±20%
• Voltage - Rated:50 V
• ESR (Equivalent Series Resistance):52mOhm @ 100Hz
• Lifetime @ Temp.:5000 Hrs @ 105°C
• Operating Temperature:-40°C ~ 105°C
• Polarization:Polar
• Ratings:-

• Applications:General Purpose
• Ripple Current @ Low Frequency:4.33 A @ 100 Hz
• Ripple Current @ High Frequency:-
• Impedance:40 mOhms
• Lead Spacing:0.394" (10.00mm)
• Size / Dimension:1.378" Dia (35.00mm)
• Height - Seated (Max):1.654" (42.00mm)
• Surface Mount Land Size:-
• Mounting Type:Through Hole
• Package / Case:Radial, Can - Snap-In - 3 Lead
