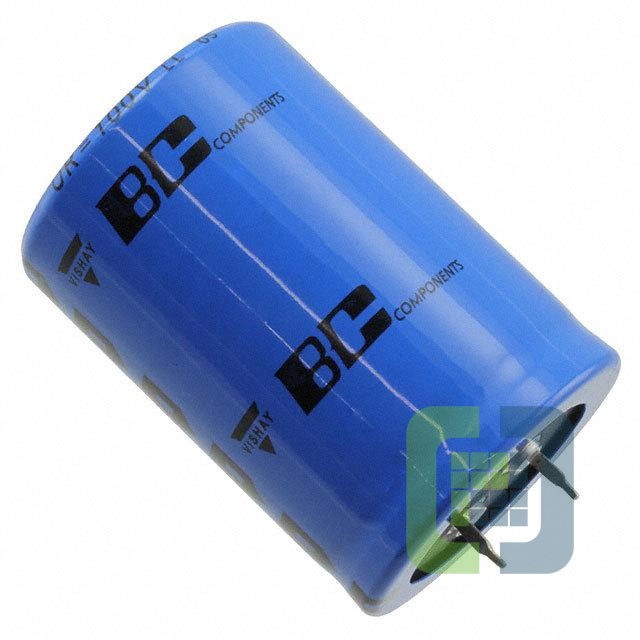

MAL205849222E3
Vishay BC Components/Beyshlag/Draloric
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 2200UF 20% 100V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet MAL205849222E3 Datasheet
-
ECAD Model
- Share
In Stock: 138
Can ship immediately
Pricing:
- 1$9.16435
- 800$8.71575
Quote It
Technical Details
- Series:058 PLL-SI
- Package:Tape & Box (TB)
- Part Status:Active
- Capacitance:2200 µF
- Tolerance:±20%
- Voltage - Rated:100 V
- ESR (Equivalent Series Resistance):82mOhm @ 100Hz
- Lifetime @ Temp.:10000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:3.13 A @ 100 Hz
- Ripple Current @ High Frequency:-
- Impedance:65 mOhms
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:1.181" Dia (30.00mm)
- Height - Seated (Max):2.047" (52.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
