380LX102M350A062
Cornell Dubilier Electronics
- Lifecycle status Active
- RoHS RoHS Compliant

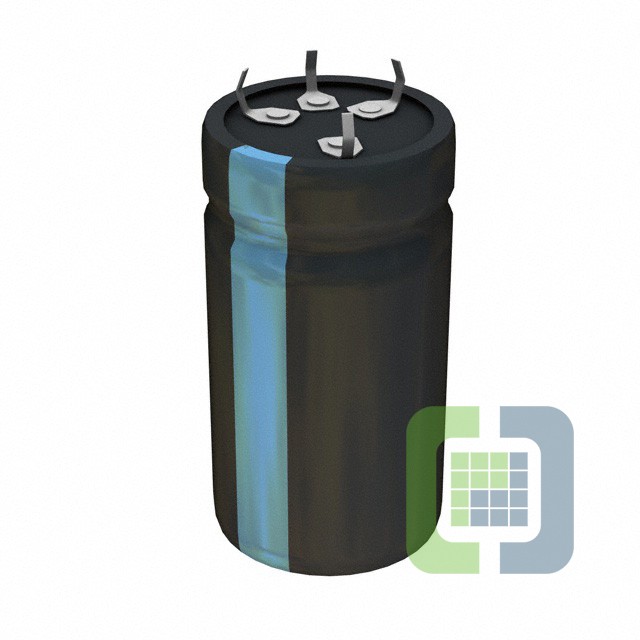

- DescriptionCAP ALUM 1000UF 20% 350V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet 380LX102M350A062 Datasheet
-
ECAD Model
- Share
In Stock: 185
Can ship immediately
Pricing:
- 1$9.27277
- 560$9.27277
Quote It
Technical Details
- Series:380LX
- Package:Bulk
- Part Status:Active
- Capacitance:1000 µF
- Tolerance:±20%
- Voltage - Rated:350 V
- ESR (Equivalent Series Resistance):250mOhm @ 120Hz
- Lifetime @ Temp.:3000 Hrs @ 85°C
- Operating Temperature:-25°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:3.8 A @ 120 Hz
- Ripple Current @ High Frequency:5.3 A @ 20 kHz
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:1.378" Dia (35.00mm)
- Height - Seated (Max):2.559" (65.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
