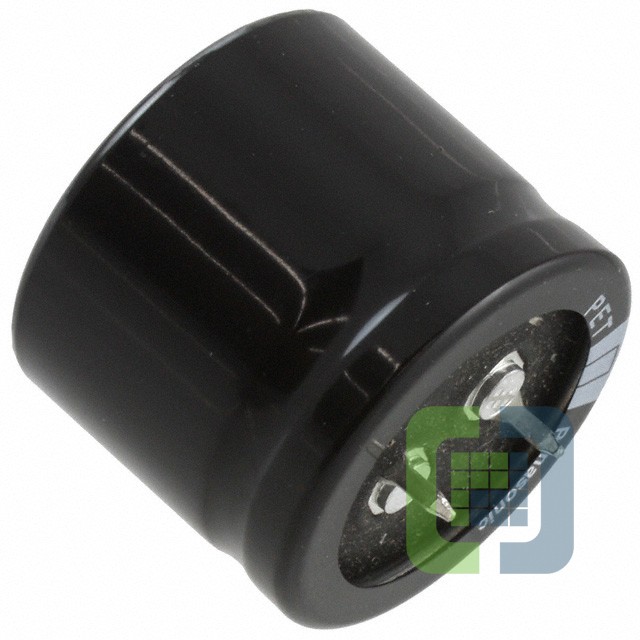

EET-HD2G681KJ
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 680UF 20% 400V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet EET-HD2G681KJ Datasheet
-
ECAD Model
- Share
In Stock: 105
Can ship immediately
Pricing:
- 1$9.38
Quote It
Technical Details
- Series:TS-HD
- Package:Bulk
- Part Status:Obsolete
- Capacitance:680 µF
- Tolerance:±20%
- Voltage - Rated:400 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:3000 Hrs @ 105°C
- Operating Temperature:-25°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:2.12 A @ 120 Hz
- Ripple Current @ High Frequency:2.968 A @ 10 kHz
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:1.181" Dia (30.00mm)
- Height - Seated (Max):2.047" (52.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
