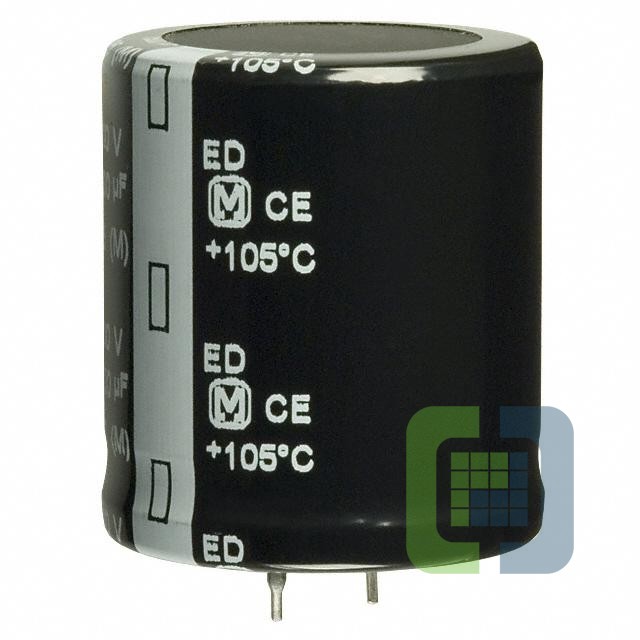

EET-ED2G471EA
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 470UF 20% 400V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet EET-ED2G471EA Datasheet
-
ECAD Model
- Share
In Stock: 185
Can ship immediately
Pricing:
- 1$9.47
Quote It
Technical Details
- Series:TS-ED
- Package:Bulk
- Part Status:Obsolete
- Capacitance:470 µF
- Tolerance:±20%
- Voltage - Rated:400 V
- ESR (Equivalent Series Resistance):282mOhm @ 120Hz
- Lifetime @ Temp.:3000 Hrs @ 105°C
- Operating Temperature:-25°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:2.01 A @ 120 Hz
- Ripple Current @ High Frequency:2.87 A @ 100 kHz
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:1.378" Dia (35.00mm)
- Height - Seated (Max):1.575" (40.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
