ALC80A911EH400
KEMET
- Lifecycle status Active
- RoHS RoHS Compliant

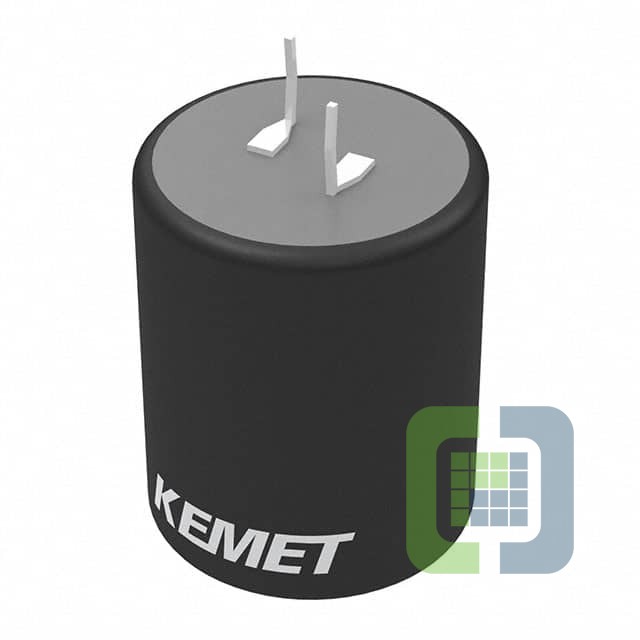

- DescriptionSNAP-IN HIGH CV 105C 910UF 400V
- CategoryAluminum Electrolytic Capacitors
-
ECAD Model
- Share
In Stock: 106
Can ship immediately
Pricing:
- 1$9.56972
- 216$9.56972
Quote It
Technical Details
- Series:ALC80
- Package:Bulk
- Part Status:Active
- Capacitance:910 µF
- Tolerance:±20%
- Voltage - Rated:400 V
- ESR (Equivalent Series Resistance):142mOhm @ 100Hz
- Lifetime @ Temp.:9000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:4.04 A @ 100 Hz
- Ripple Current @ High Frequency:9.48 A @ 10 kHz
- Impedance:75 mOhms
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:1.575" Dia (40.00mm)
- Height - Seated (Max):2.441" (62.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
