B43508B9477M87
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant

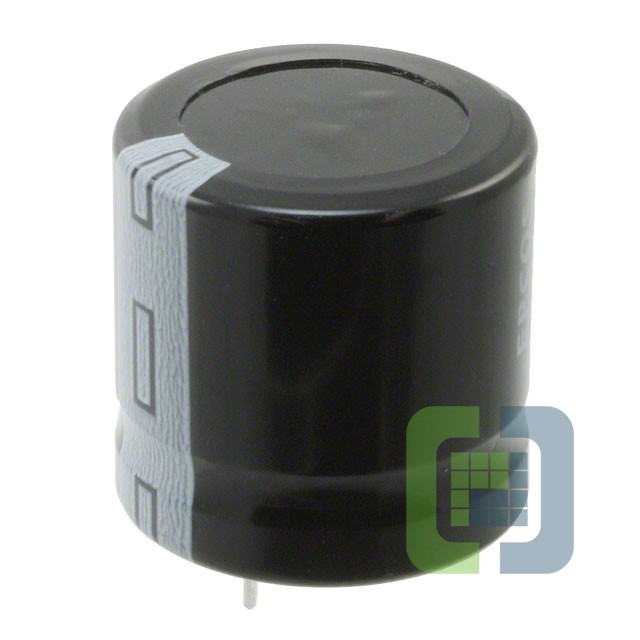

- DescriptionCAP ALUM 470UF 20% 400V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet B43508B9477M87 Datasheet
-
ECAD Model
- Share
In Stock: 130
Can ship immediately
Pricing:
- 1$9.69129
- 240$9.69129
Quote It
Technical Details
- Series:B43508
- Package:Bulk
- Part Status:Active
- Capacitance:470 µF
- Tolerance:±20%
- Voltage - Rated:400 V
- ESR (Equivalent Series Resistance):260mOhm @ 100Hz
- Lifetime @ Temp.:3000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:1.62 A @ 100 Hz
- Ripple Current @ High Frequency:-
- Impedance:370 mOhms
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:1.378" Dia (35.00mm)
- Height - Seated (Max):1.465" (37.20mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
