LGM2W391MELA45
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant

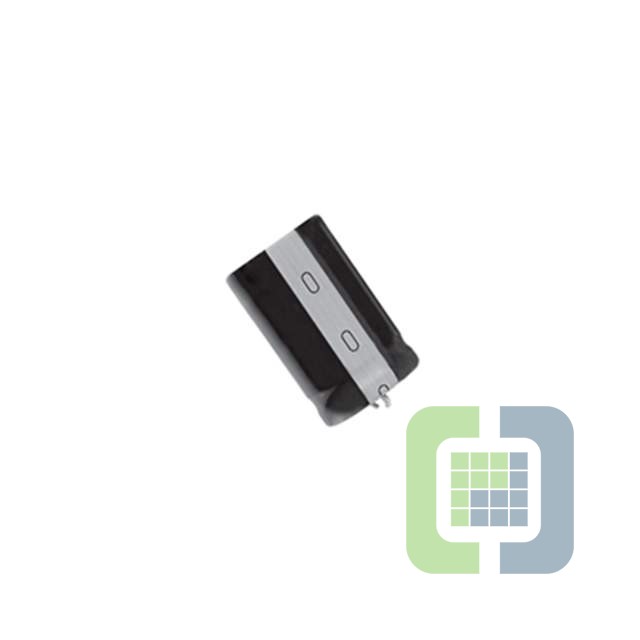

- DescriptionCAP ALUM 390UF 20% 450V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet LGM2W391MELA45 Datasheet
-
ECAD Model
- Share
In Stock: 182
Can ship immediately
Pricing:
- 1$9.83
- 10$8.73871
- 100$6.99078
- 500$6.00774
- 1,000$5.94219
Quote It
Technical Details
- Series:LGM
- Package:Bulk
- Part Status:Active
- Capacitance:390 µF
- Tolerance:±20%
- Voltage - Rated:450 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-25°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:900 mA @ 120 Hz
- Ripple Current @ High Frequency:-
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:0.984" Dia (25.00mm)
- Height - Seated (Max):1.870" (47.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
