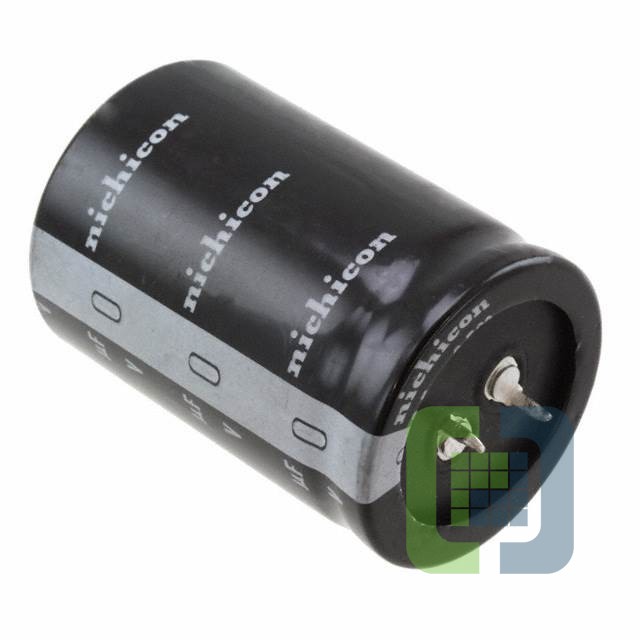

LLG2D332MELC50
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 3300UF 20% 200V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet LLG2D332MELC50 Datasheet
-
ECAD Model
- Share
In Stock: 168
Can ship immediately
Pricing:
- 1$9.8765
- 200$9.4062
Quote It
Technical Details
- Series:LLG
- Package:Bulk
- Part Status:Active
- Capacitance:3300 µF
- Tolerance:±20%
- Voltage - Rated:200 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:4.42 A @ 120 Hz
- Ripple Current @ High Frequency:6.63 A @ 50 kHz
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:1.378" Dia (35.00mm)
- Height - Seated (Max):2.047" (52.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
