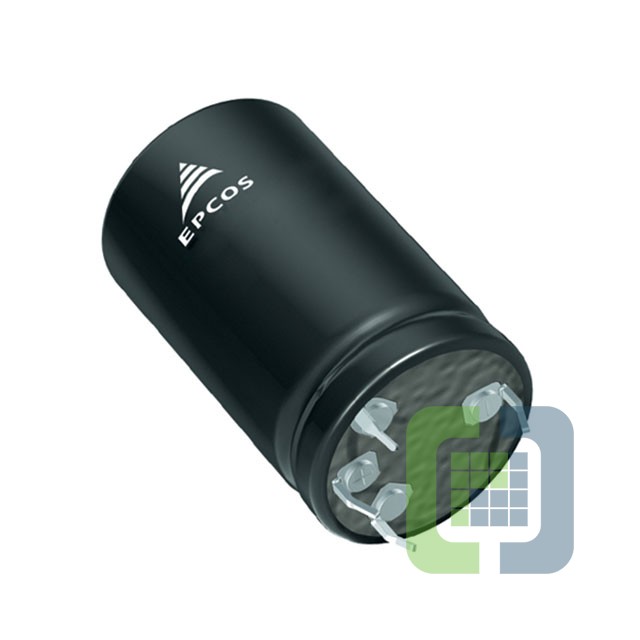

B43511A4567M87
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 560UF 20% 350V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet B43511A4567M87 Datasheet
-
ECAD Model
- Share
In Stock: 191
Can ship immediately
Pricing:
- 1$9.95558
- 240$9.95558
Quote It
Technical Details
- Series:B43511
- Package:Bulk
- Part Status:Active
- Capacitance:560 µF
- Tolerance:±20%
- Voltage - Rated:350 V
- ESR (Equivalent Series Resistance):160mOhm @ 100Hz
- Lifetime @ Temp.:12000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:3.2 A @ 100 Hz
- Ripple Current @ High Frequency:-
- Impedance:190 mOhms
- Lead Spacing:0.886" (22.50mm)
- Size / Dimension:1.378" Dia (35.00mm)
- Height - Seated (Max):2.055" (52.20mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In - 4 Lead
