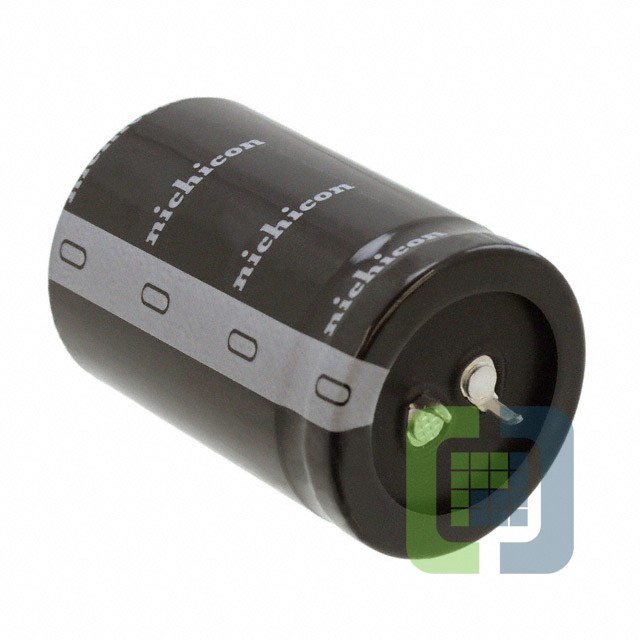

LKX2W561MESC50

Technical Details

• Series:LKX
• Package:Bulk
• Part Status:Active
• Capacitance:560 µF
• Tolerance:±20%
• Voltage - Rated:450 V
• ESR (Equivalent Series Resistance):-
• Lifetime @ Temp.:2000 Hrs @ 105°C
• Operating Temperature:-25°C ~ 105°C
• Polarization:Polar
• Ratings:-

• Applications:Audio
• Ripple Current @ Low Frequency:1.99 A @ 120 Hz
• Ripple Current @ High Frequency:2.8457 A @ 50 kHz
• Impedance:-
• Lead Spacing:0.394" (10.00mm)
• Size / Dimension:1.378" Dia (35.00mm)
• Height - Seated (Max):2.047" (52.00mm)
• Surface Mount Land Size:-
• Mounting Type:Through Hole
• Package / Case:Radial, Can - Snap-In
