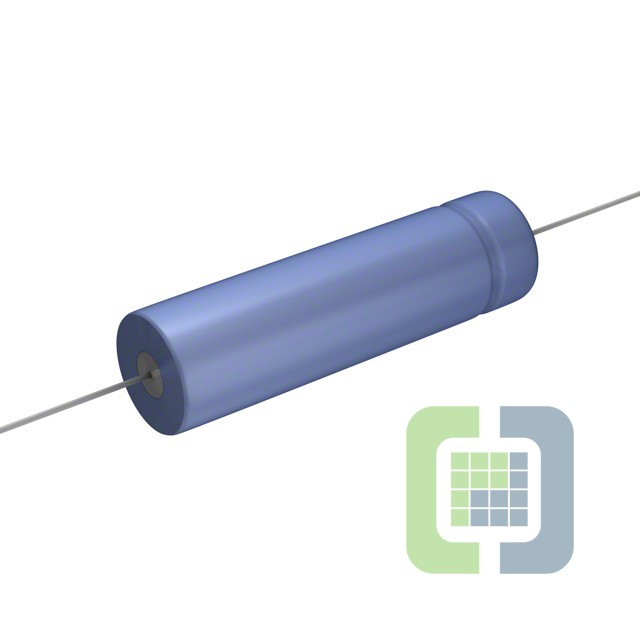

WBR40-250A
Cornell Dubilier Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 40UF 250V AXIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet WBR40-250A Datasheet
-
ECAD Model
- Share
In Stock: 138
Can ship immediately
Pricing:
- 1$10.25571
- 350$9.78955
Quote It
Technical Details
- Series:WBR
- Package:Bulk
- Part Status:Active
- Capacitance:40 µF
- Tolerance:-10%, +100%
- Voltage - Rated:250 V
- ESR (Equivalent Series Resistance):6.3Ohm @ 120Hz
- Lifetime @ Temp.:2000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:125 mA @ 120 Hz
- Ripple Current @ High Frequency:162.5 mA @ 100 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:0.520" Dia x 1.830" L (13.21mm x 46.48mm)
- Height - Seated (Max):-
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Axial, Can
