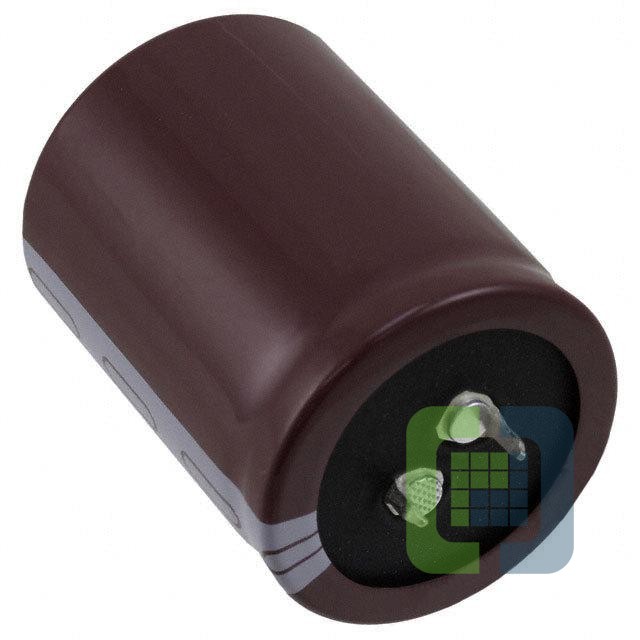

ETXH251VSN821MB30S
United Chemi-Con
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP POLY 820UF 20% 250V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet ETXH251VSN821MB30S Datasheet
-
ECAD Model
- Share
In Stock: 200
Can ship immediately
Pricing:
- 1$10.53675
- 200$10.035
Quote It
Technical Details
- Series:TXH
- Package:Bulk
- Part Status:Active
- Capacitance:820 µF
- Tolerance:±20%
- Voltage - Rated:250 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:10000 Hrs @ 105°C
- Operating Temperature:-25°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:1.96 A @ 120 Hz
- Ripple Current @ High Frequency:2.94 A @ 100 kHz
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:1.575" Dia (40.00mm)
- Height - Seated (Max):1.260" (32.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
