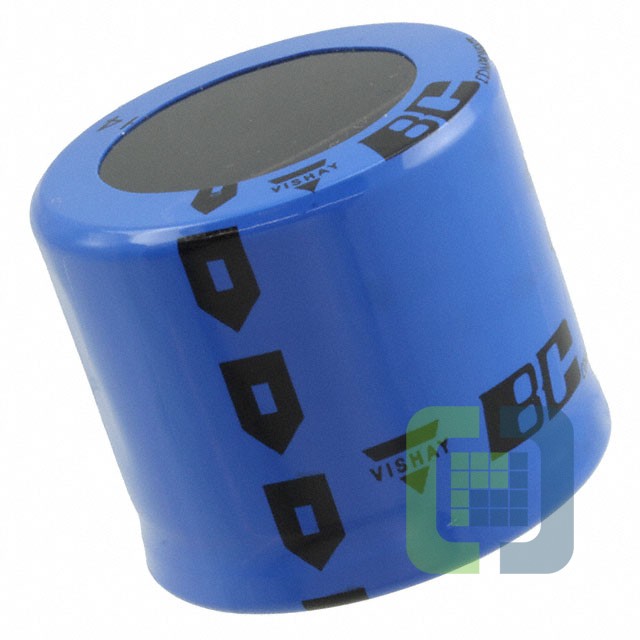

MAL219886331E3
Vishay BC Components/Beyshlag/Draloric
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 330UF 20% 400V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet MAL219886331E3 Datasheet
-
ECAD Model
- Share
In Stock: 110
Can ship immediately
Pricing:
- 1$10.59943
- 600$10.3224
Quote It
Technical Details
- Series:198 PHR-SI
- Package:Bulk
- Part Status:Active
- Capacitance:330 µF
- Tolerance:±20%
- Voltage - Rated:400 V
- ESR (Equivalent Series Resistance):290mOhm @ 100Hz
- Lifetime @ Temp.:15000 Hrs @ 85°C
- Operating Temperature:-25°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:2.18 A @ 100 Hz
- Ripple Current @ High Frequency:-
- Impedance:210 mOhms
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:1.378" Dia (35.00mm)
- Height - Seated (Max):1.457" (37.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In - 3 Lead
