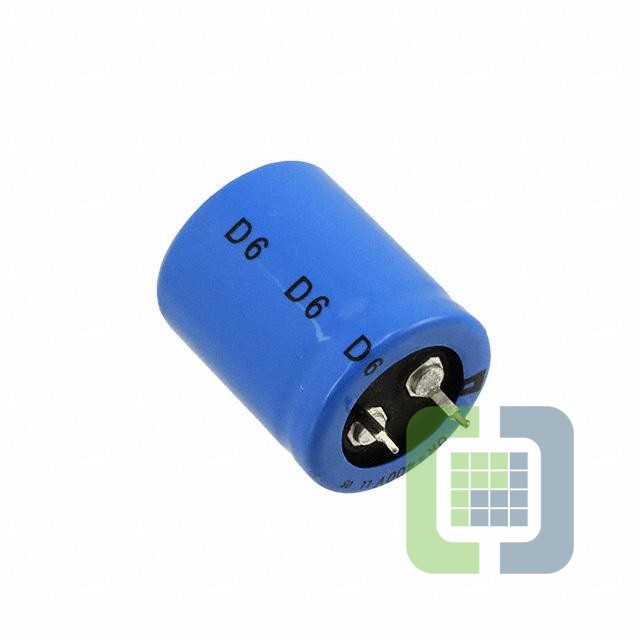

MAL205728471E3
Vishay BC Components/Beyshlag/Draloric
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 470UF 20% 385V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet MAL205728471E3 Datasheet
-
ECAD Model
- Share
In Stock: 116
Can ship immediately
Pricing:
- 1$10.75238
- 600$9.99539
Quote It
Technical Details
- Series:057 PSM-SI
- Package:Tape & Box (TB)
- Part Status:Active
- Capacitance:470 µF
- Tolerance:±20%
- Voltage - Rated:385 V
- ESR (Equivalent Series Resistance):340mOhm @ 100Hz
- Lifetime @ Temp.:12000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:Audio
- Ripple Current @ Low Frequency:2.29 A @ 100 Hz
- Ripple Current @ High Frequency:-
- Impedance:220 mOhms
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:1.378" Dia (35.00mm)
- Height - Seated (Max):1.850" (47.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In - 3 Lead
