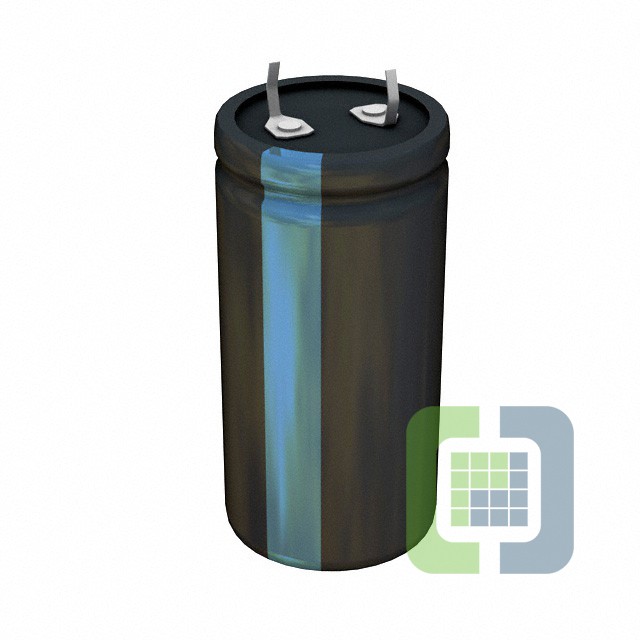

380LX151M500J052
Cornell Dubilier Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 150UF 20% 500V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet 380LX151M500J052 Datasheet
-
ECAD Model
- Share
In Stock: 125
Can ship immediately
Pricing:
- 1$10.98725
- 80$10.98725
Quote It
Technical Details
- Series:380LX
- Package:Bulk
- Part Status:Active
- Capacitance:150 µF
- Tolerance:±20%
- Voltage - Rated:500 V
- ESR (Equivalent Series Resistance):945mOhm @ 120Hz
- Lifetime @ Temp.:3000 Hrs @ 85°C
- Operating Temperature:-25°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:1.4 A @ 120 Hz
- Ripple Current @ High Frequency:1.9 A @ 20 kHz
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:0.984" Dia (25.00mm)
- Height - Seated (Max):2.047" (52.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
