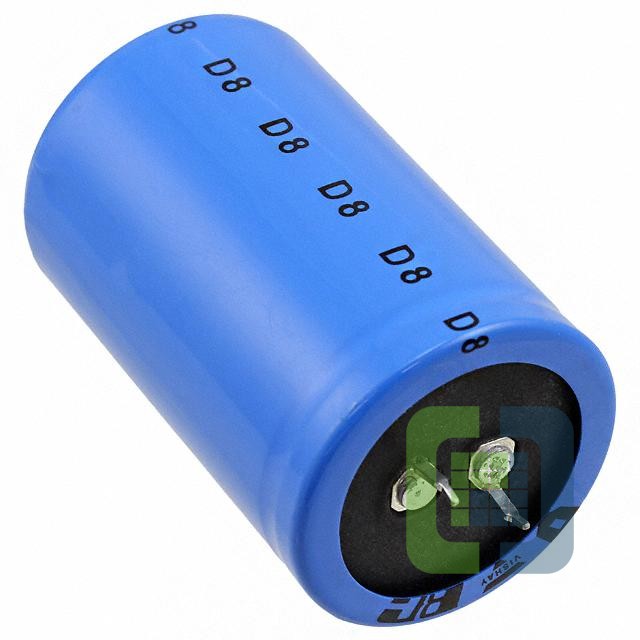

MAL215953122E3
Vishay BC Components/Beyshlag/Draloric
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 1200UF 20% 250V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet MAL215953122E3 Datasheet
-
ECAD Model
- Share
In Stock: 138
Can ship immediately
Pricing:
- 1$11.04632
- 600$10.7576
Quote It
Technical Details
- Series:159 PUL-SI
- Package:Bulk
- Part Status:Active
- Capacitance:1200 µF
- Tolerance:±20%
- Voltage - Rated:250 V
- ESR (Equivalent Series Resistance):200mOhm @ 100Hz
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-25°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:2.65 A @ 120 Hz
- Ripple Current @ High Frequency:-
- Impedance:160 mOhms
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:1.378" Dia (35.00mm)
- Height - Seated (Max):2.047" (52.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
