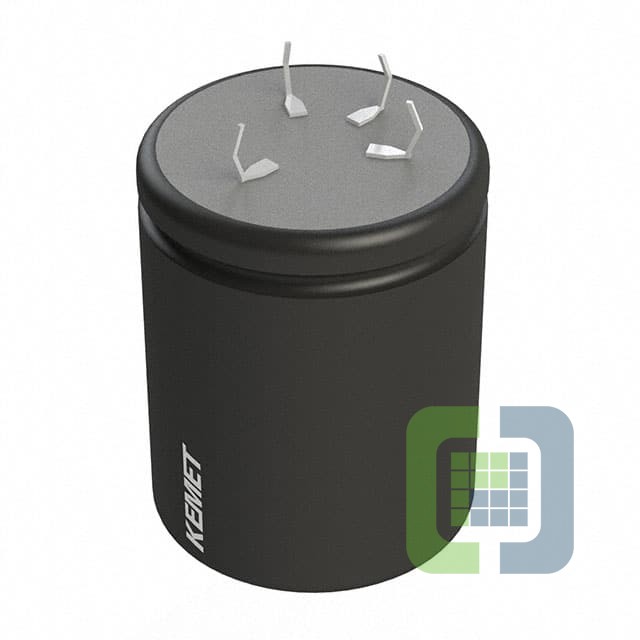

ALC80C392EL200
KEMET
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSNAP-IN HIGH CV 105C 3900UF 200V
- CategoryAluminum Electrolytic Capacitors
-
ECAD Model
- Share
In Stock: 149
Can ship immediately
Pricing:
- 1$11.07227
- 216$11.07227
Quote It
Technical Details
- Series:ALC80
- Package:Bulk
- Part Status:Active
- Capacitance:3900 µF
- Tolerance:±20%
- Voltage - Rated:200 V
- ESR (Equivalent Series Resistance):62mOhm @ 100Hz
- Lifetime @ Temp.:9000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:6.9 A @ 100 Hz
- Ripple Current @ High Frequency:11.67 A @ 10 kHz
- Impedance:39 mOhms
- Lead Spacing:0.886" (22.50mm)
- Size / Dimension:1.575" Dia (40.00mm)
- Height - Seated (Max):3.228" (82.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In - 4 Lead
