E36D451LPN222TDA5M
United Chemi-Con
- Lifecycle status Active
- RoHS RoHS Compliant

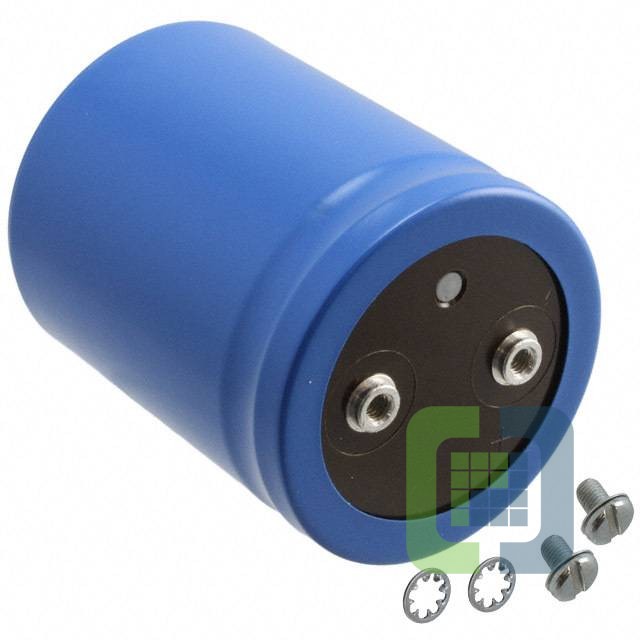

- DescriptionCAP ALUM 2200UF 450V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet E36D451LPN222TDA5M Datasheet
-
ECAD Model
- Share
In Stock: 122
Can ship immediately
Pricing:
- 1$30.66
- 10$29.0493
- 100$23.40083
- 500$20.98005
Quote It
Technical Details
- Series:U36D
- Package:Bulk
- Part Status:Obsolete
- Capacitance:2200 µF
- Tolerance:-10%, +50%
- Voltage - Rated:450 V
- ESR (Equivalent Series Resistance):114.5mOhm @ 120Hz
- Lifetime @ Temp.:2000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:6.86 A @ 120 Hz
- Ripple Current @ High Frequency:9.604 A @ 3 kHz
- Impedance:-
- Lead Spacing:1.126" (28.60mm)
- Size / Dimension:2.500" Dia (63.50mm)
- Height - Seated (Max):4.125" (104.78mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
