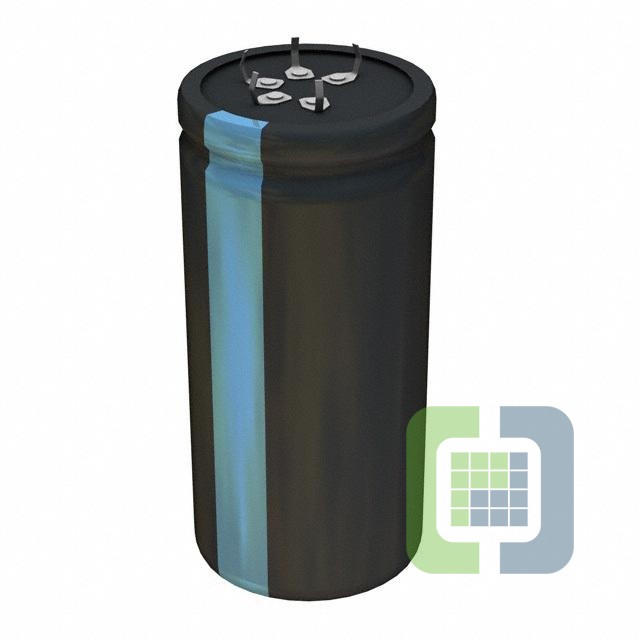

383LX223M100B102VS
Cornell Dubilier Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 22000UF 20% 100V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet 383LX223M100B102VS Datasheet
-
ECAD Model
- Share
In Stock: 196
Can ship immediately
Pricing:
- 1$30.80905
- 10$29.18576
- 100$23.51064
Quote It
Technical Details
- Series:383LX
- Package:Bulk
- Part Status:Active
- Capacitance:22000 µF
- Tolerance:±20%
- Voltage - Rated:100 V
- ESR (Equivalent Series Resistance):15mOhm @ 120Hz
- Lifetime @ Temp.:3000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:9.32 A @ 120 Hz
- Ripple Current @ High Frequency:10.72 A @ 20 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:1.969" Dia (50.00mm)
- Height - Seated (Max):4.213" (107.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In - 5 Lead
