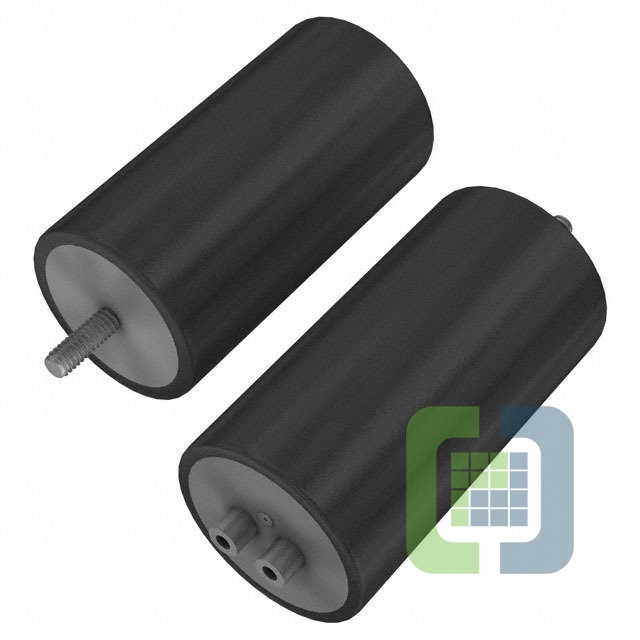

PEH169PJ4470QB2
KEMET
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 4700UF 100V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet PEH169PJ4470QB2 Datasheet
-
ECAD Model
- Share
In Stock: 114
Can ship immediately
Pricing:
- 1$31.85427
- 96$31.85427
Quote It
Technical Details
- Series:PEH169
- Package:Bulk
- Part Status:Active
- Capacitance:4700 µF
- Tolerance:-10%, +30%
- Voltage - Rated:100 V
- ESR (Equivalent Series Resistance):26mOhm @ 100Hz
- Lifetime @ Temp.:8000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:-
- Ripple Current @ High Frequency:-
- Impedance:17 mOhms
- Lead Spacing:0.866" (22.00mm)
- Size / Dimension:2.032" Dia (51.60mm)
- Height - Seated (Max):3.878" (98.50mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
