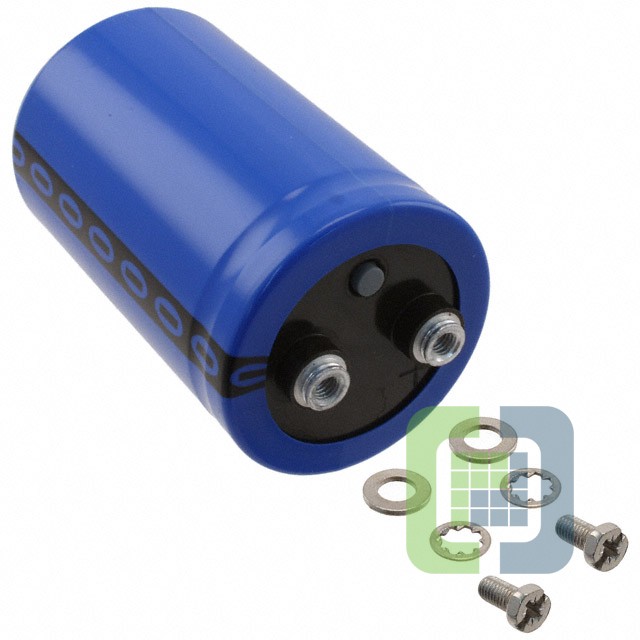

MAL210216102E3
Vishay BC Components/Beyshlag/Draloric
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 1000UF 20% 400V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet MAL210216102E3 Datasheet
-
ECAD Model
- Share
In Stock: 155
Can ship immediately
Pricing:
- 1$32.34
- 150$30.8
Quote It
Technical Details
- Series:102 PHR-ST
- Package:Bulk
- Part Status:Active
- Capacitance:1000 µF
- Tolerance:±20%
- Voltage - Rated:400 V
- ESR (Equivalent Series Resistance):128mOhm
- Lifetime @ Temp.:10000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:-
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:-
- Ripple Current @ High Frequency:8.55 A @ 10 kHz
- Impedance:86 mOhms
- Lead Spacing:0.874" (22.20mm)
- Size / Dimension:1.969" Dia (50.00mm)
- Height - Seated (Max):3.150" (80.00mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
