LNR2D682MSE
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant

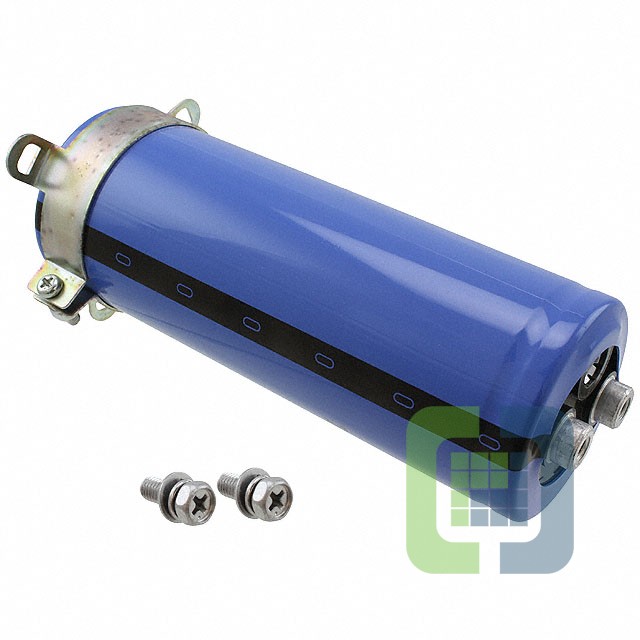

- DescriptionCAP ALUM 6800UF 20% 200V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet LNR2D682MSE Datasheet
-
ECAD Model
- Share
In Stock: 185
Can ship immediately
Pricing:
- 1$34.7432
- 10$32.81748
- 100$26.54345
Quote It
Technical Details
- Series:LNR
- Package:Bulk
- Part Status:Active
- Capacitance:6800 µF
- Tolerance:±20%
- Voltage - Rated:200 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:5000 Hrs @ 85°C
- Operating Temperature:-25°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:7.3 A @ 120 Hz
- Ripple Current @ High Frequency:8.76 A @ 10 kHz
- Impedance:-
- Lead Spacing:0.866" (22.00mm)
- Size / Dimension:2.008" Dia (51.00mm)
- Height - Seated (Max):5.630" (143.00mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
