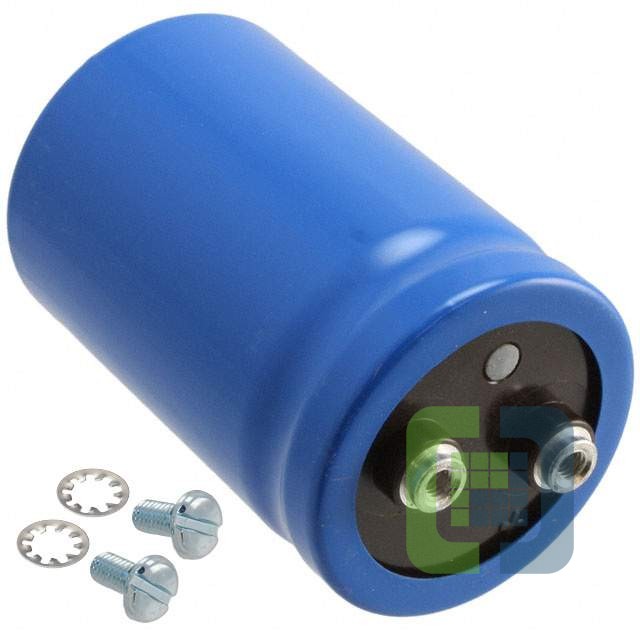

CGS223U040V3C
Cornell Dubilier Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 22000UF 40V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet CGS223U040V3C Datasheet
-
ECAD Model
- Share
In Stock: 175
Can ship immediately
Pricing:
- 1$35.66429
- 10$33.68294
- 100$27.2436
Quote It
Technical Details
- Series:CGS
- Package:Bulk
- Part Status:Active
- Capacitance:22000 µF
- Tolerance:-10%, +75%
- Voltage - Rated:40 V
- ESR (Equivalent Series Resistance):31mOhm @ 120Hz
- Lifetime @ Temp.:2000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:7.1 A @ 120 Hz
- Ripple Current @ High Frequency:9.23 A @ 10 kHz
- Impedance:-
- Lead Spacing:0.875" (22.22mm)
- Size / Dimension:2.000" Dia (50.80mm)
- Height - Seated (Max):3.125" (79.38mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
