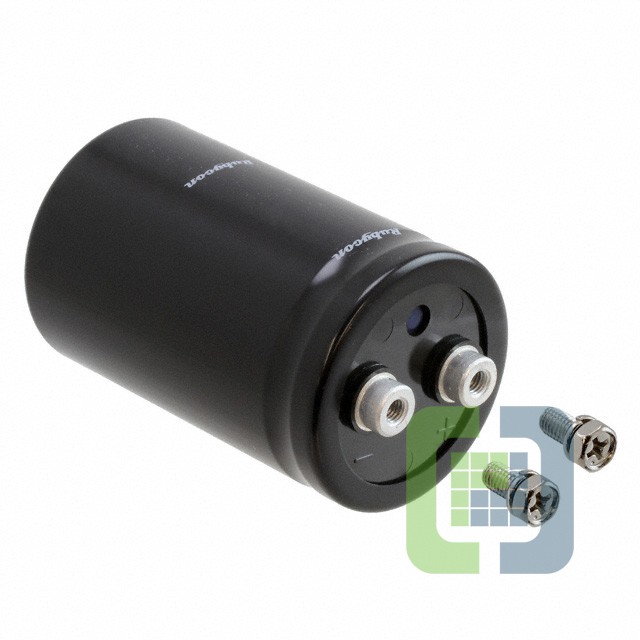

80LSW15000MEFC51X83
Rubycon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 15000UF 20% 80V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet 80LSW15000MEFC51X83 Datasheet
-
ECAD Model
- Share
In Stock: 136
Can ship immediately
Pricing:
- 1$36.331
- 10$36.331
Quote It
Technical Details
- Series:LSW
- Package:Bulk
- Part Status:Active
- Capacitance:15000 µF
- Tolerance:±20%
- Voltage - Rated:80 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:3000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:7.6 A @ 120 Hz
- Ripple Current @ High Frequency:8.36 A @ 10 kHz
- Impedance:-
- Lead Spacing:0.858" (21.80mm)
- Size / Dimension:2.008" Dia (51.00mm)
- Height - Seated (Max):3.386" (86.00mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
