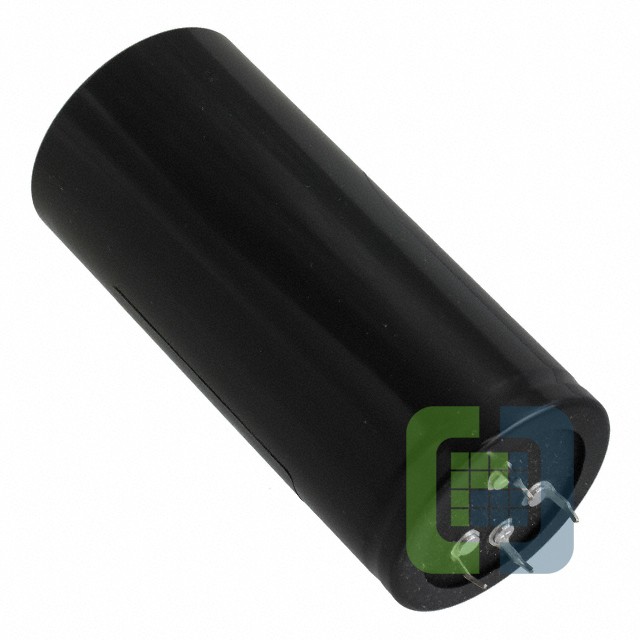

B43510A5228M007
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 2200UF 20% 450V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet B43510A5228M007 Datasheet
-
ECAD Model
- Share
In Stock: 185
Can ship immediately
Pricing:
- 1$41.50768
- 112$41.50768
Quote It
Technical Details
- Series:B43510
- Package:Bulk
- Part Status:Active
- Capacitance:2200 µF
- Tolerance:±20%
- Voltage - Rated:450 V
- ESR (Equivalent Series Resistance):50mOhm @ 100Hz
- Lifetime @ Temp.:5000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:8.65 A @ 100 Hz
- Ripple Current @ High Frequency:-
- Impedance:75 mOhms
- Lead Spacing:0.984" (25.00mm)
- Size / Dimension:1.772" Dia (45.00mm)
- Height - Seated (Max):4.016" (102.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In - 4 Lead
